Attenuator Pod

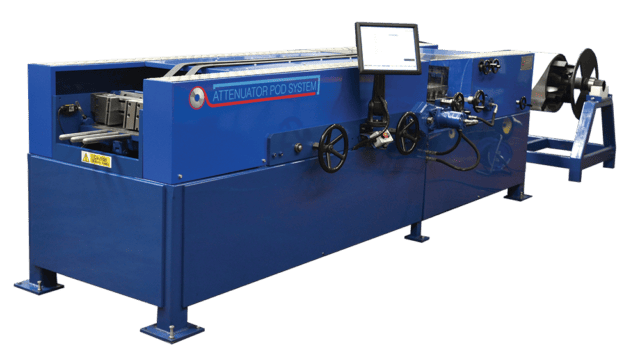

The Engel Europa Attenuator Pod Machine manufactures pods from Full Wrap, “L” Shape and Flat Strip Coil.

Specifications

Manufacture pods from Full Wrap, “L” Shape and Flat Strip Coil. Smallest Pod Size: 120mm x 120mm. No Maximum Size. Gauge Thickness is maximum 1mm Minimum 0.6mm

Widths available: 100mm wide to 500mm wide in 100mm increments, or to customer specifications. Width is adjustable using hand adjustment cranks

Right Angle Flange or with radius as per customers request. End Notch and V Notch are to flange parameters. End Notch features the punch holes for pot riveting the pod together

7 Station Leveller with beading if required. Beading can be lifted OFF if not required and is fully adjustable

Rollformers are 7, 8 and 10 station depending in the form requirements

Machine length is approximately 3 metres plus 3 metres for coils. Coil holders for 3 rolls are included

Autofold v7 variable flow windows XP based touch screen controller, including Jobs, Make Quick and Self Diagnostics Programmes

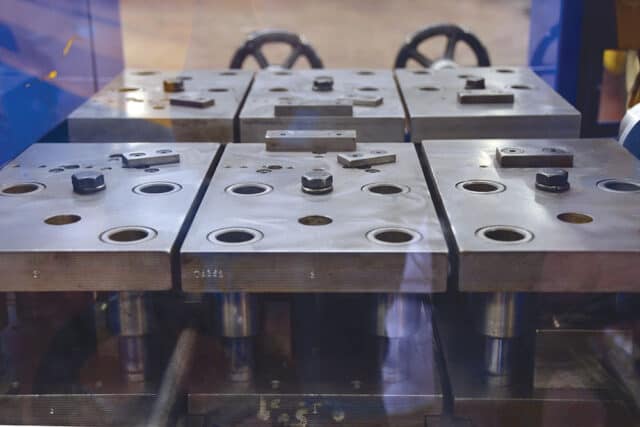

Notching and hole punch for rivets are available as options

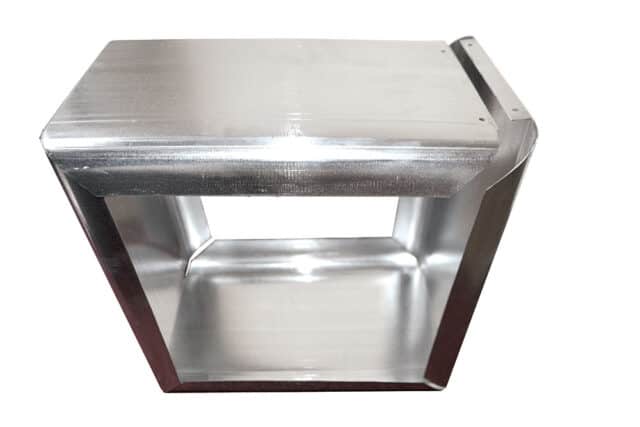

With a smallest pod size of 120x120mm there is no maximum pod size.

The Attenuator Pod Machine is supplied with a right angle flange or with radius to the customer’s specification on 7 Station Rollformer. Special Requests can be quoted separately as required.

Control inputs are made via a touchscreen mounted to the side of the machine.
